Threaded Hydraulic Fitting
Threaded Hydraulic Fitting
TM-HF-011

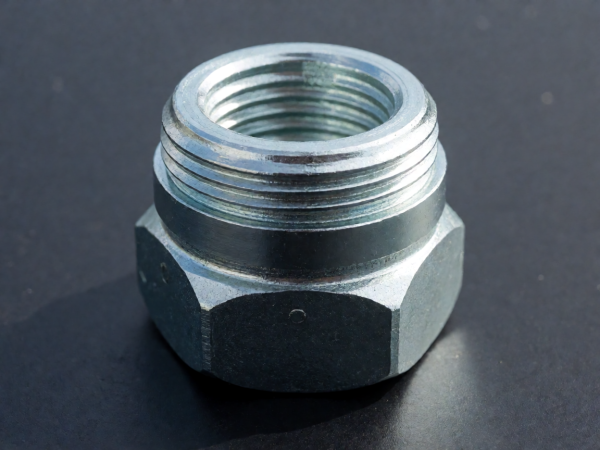

Zinc-nickel plated hydraulic cutting ring fitting rated 315 bar, with precision-threaded body and sealed cone seat.
- Material
- Carbon Steel 1045, forged
- Plating
- Zinc-nickel, 1000 h salt spray
- Tolerance
- Thread 6g / sealing cone ±0.01 mm
- Working Pressure
- 31.5 MPa
- Certification
- ISO 9001:2015
- Thread
- G3/8
- Tube Side
- Ø12 cutting ring
- Body Across Flats
- 27 mm
- Proof Pressure
- 94.5 MPa
- Sealing
- 24° cone
- Batch Test
- 100% pressure proof
- Process
- Forging & CNC Threading

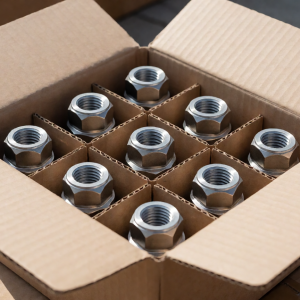

- Packaging
- Kitted with ferrules
Forged carbon steel bodies are threaded, drilled and cone-seated in controlled cycles, then zinc-nickel plated for corrosion resistance beyond 1,000 hours salt spray. Every batch is proof-tested above operating pressure and leak-checked at 31.5 MPa before packing.
Cutting ring and ferrule assemblies are matched to tube size so installers get consistent sealing without re-flaring. Metric and BSP thread variants share the same body family for mixed-line orders.
- Mobile hydraulic circuits
- Press and machine tool lines
- Injection molding equipment
- Test bench fluid systems
