Mounting Bracket

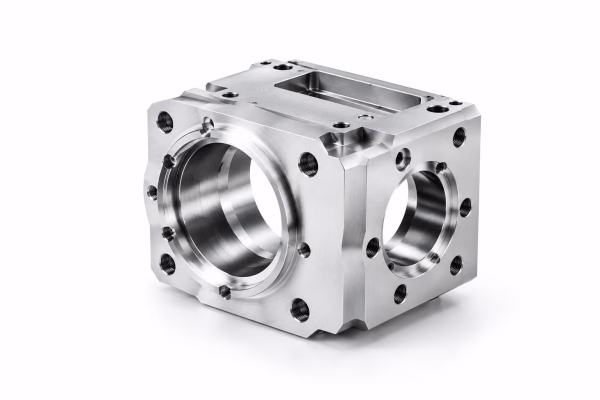

Machined metal block with two large bores and many bolt holes

Mounting Bracket

TM-BR-005

Multi-face machined mounting bracket providing stable, accurate component interfaces.

Material
Aluminum 6061-T6
Surface Finish
Ra 1.6
Tolerance
±0.02mm
Anodizing
Type II Clear
Certification
ISO 9001:2015
Request a Quote Download Datasheet
Base Size
120 x 90 mm
Height
65 mm
Flatness
0.02 mm
Perpendicularity
0.03 mm
Weight
0.58 kg
Process
4-Axis CNC Milling

Machined on multi-axis machining centers in a single setup, our mounting brackets maintain tight perpendicularity and position accuracy across all faces.

The 6061-T6 body is milled complete in one fixture, then clear Type II anodized for a consistent, non-reflective finish. Related brackets, plates and carriers from the same drawing family are machined together to guarantee fit at assembly.

  • Sensor and valve mounting on machine frames
  • Motor and actuator carriers
  • Enclosure and panel support
  • Retrofit and automation assemblies
