Connecting Base
Connecting Base
TM-CN-007

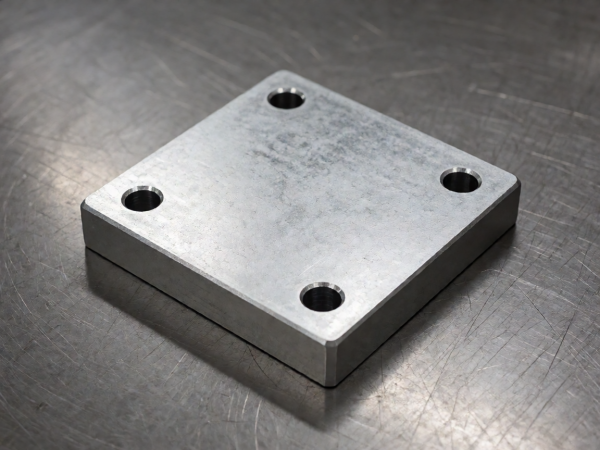

Machined connecting base with precise bolt patterns for structural join applications.
- Material
- Carbon Steel S355
- Surface Finish
- Ra 3.2
- Tolerance
- ±0.05mm
- Coating
- Zinc Plated
- Certification
- ISO 9001:2015
- Length
- 160 mm
- Width
- 90 mm
- Bolt Holes
- 4 x Ø11 mm
- Thickness
- 20 mm
- Weight
- 1.6 kg
- Process
- CNC Milling & Drilling
Produced with coordinated drilling and milling operations, our connecting bases provide accurate bolt alignment and stable load-bearing interfaces.
Bolt patterns are produced on coordinate boring fixtures to keep group position within 0.05 mm, and the zinc-plated coating passes 720 h neutral salt spray. Custom hole layouts and machined pockets are standard variations from the same base plate family.
- Machine base and column joints
- Conveyor and framing structural links
- Gearmotor mounting interfaces
- Skid and enclosure subframes
