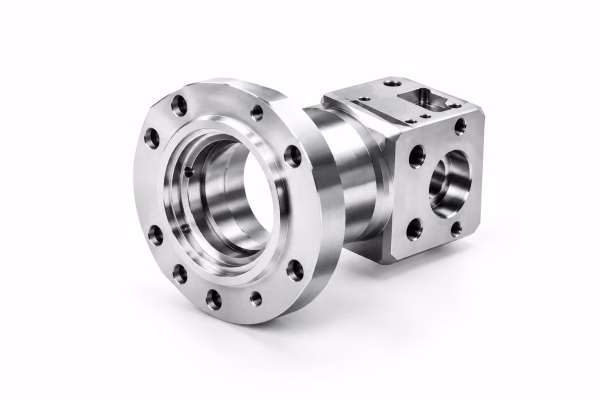

Machined metal flange housing with bolt holes on a white background

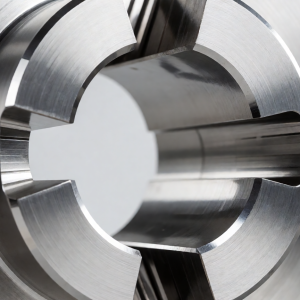

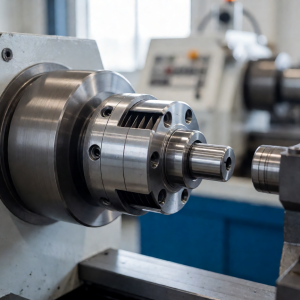

Coupling

TM-CP-006

Precision coupling with balanced geometry for reliable torque transmission between shafts.

Material
Stainless Steel 316L
Surface Finish
Ra 1.6
Tolerance
±0.01mm
Balance Grade
G6.3
Certification
ISO 9001:2015
Request a Quote Download Datasheet
Outer Diameter
78 mm
Bore
Ø25 H7
Torque Rating
180 Nm
Max Speed
6,000 rpm
Weight
0.85 kg
Process
CNC Turning & Milling

Balanced and machined in complete cycles, our couplings minimize vibration and ensure dependable torque transmission in high-speed rotating equipment.

Each coupling is dynamically balanced to G6.3 at the rated speed after final machining, so it drops straight into high-speed service without re-balance. Bores are finished to H7 with keyway or clamp options, and pilot bore material is available for on-site fitting.

  • Pump-to-motor drive trains
  • High-speed spindle and blower links
  • Compressor and generator sets
  • Precision positioning axes
