Helical Bevel Gear Pair
Helical Bevel Gear Pair
TM-HG-016

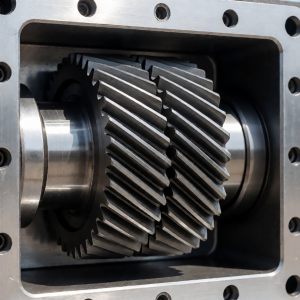

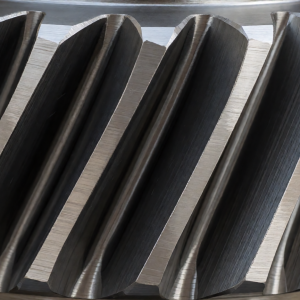

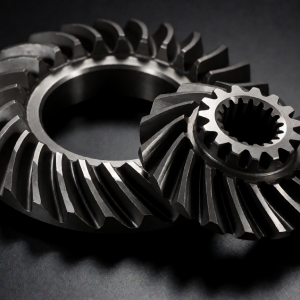

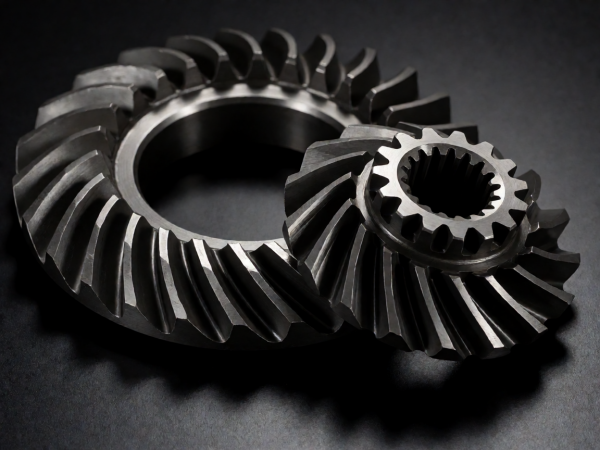

Matched lapped spiral bevel gear and pinion set, ground to ISO Grade 6 for quiet high-ratio right-angle drives.
- Material
- Alloy Steel 18CrNiMo7-6
- Accuracy
- ISO 1328 Grade 6
- Hardness
- Case 58-62 HRC
- Finish
- Lapped tooth flanks
- Certification
- ISO 9001:2015
- Ratio
- 43:14
- Module
- 3.5 mm
- Pitch Cone Angle
- 72°
- Face Width
- 28 mm
- Bore
- Pilot, customer finish
- Weight Pair
- 2.6 kg
- Process
- Face Milling & Lapping
- Inspection
- Gear metrology report
Gear and pinion are cut, case hardened and finish-lapped as a matched pair on grinding centers, arriving at ISO Grade 6 accuracy with contact patterns verified by machine and by hand inspection. Sets ship paired and indexed, never swapped between mating lots.
Face back settings, mounting distance and lubrication notes accompany every set, and custom ratios or left-hand spirals are handled as drawing-driven variants of the same family.
- Right-angle gearbox drives
- Rotary positioners and turntables
- Mixing and agitator gear units
- Agricultural machinery drives
