Conveyor Drive Assembly
Conveyor Drive Assembly
TM-CD-015

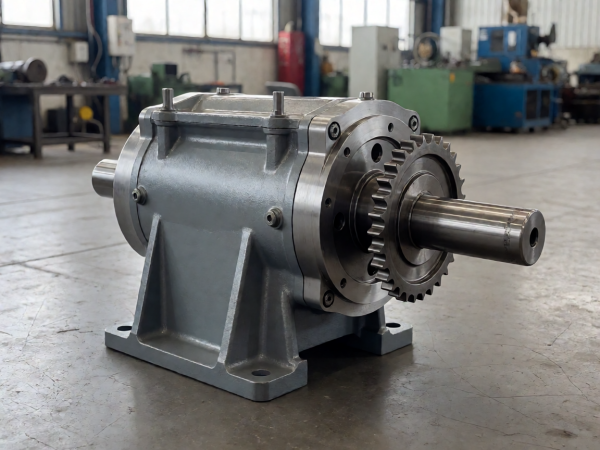

Complete conveyor drive unit: machined housing, shaft, sprocket and bearings, aligned and running-in before shipment.
- Material
- Housing GG25, Shaft 42CrMo4
- Tolerance
- Interface bore H7, shaft runout 0.05 mm
- Hardness
- Shaft 28-32 HRC
- Lubrication
- Sealed bearings, grease packed
- Certification
- ISO 9001:2015
- Shaft Bore
- Ø45 k6
- Sprocket
- 15T, pitch 25.4 mm
- Rated Torque
- 420 Nm

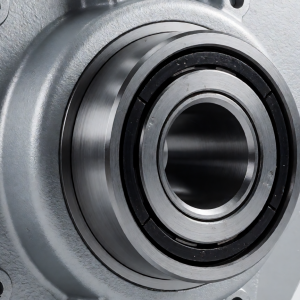

- Bearing
- 2 x sealed 6209
- Run-in
- 2 h no-load test
- Weight
- 14 kg
- Process
- Assemble & Test
- Packaging
- Export crate with guards

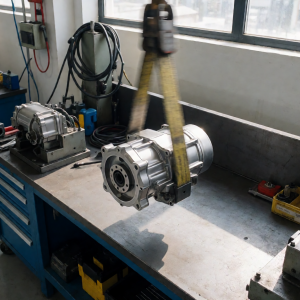

Each drive unit is built on a machined cast housing with a keyed shaft, sprocket and sealed bearings, assembled under torque-controlled procedures and run-in on a test stand for noise, temperature and backlash. Shipping guards lock the sprocket so nothing shifts in transit.
Ratio and shaft options follow line speed targets; the unit ships with its interface drawing so take-up and gearbox mates line up on site without field machining.
- Package and unit-belt conveyor drives
- Bulk material handling lines
- Food and packaging plant conveyors
- Sorting system transfer points
