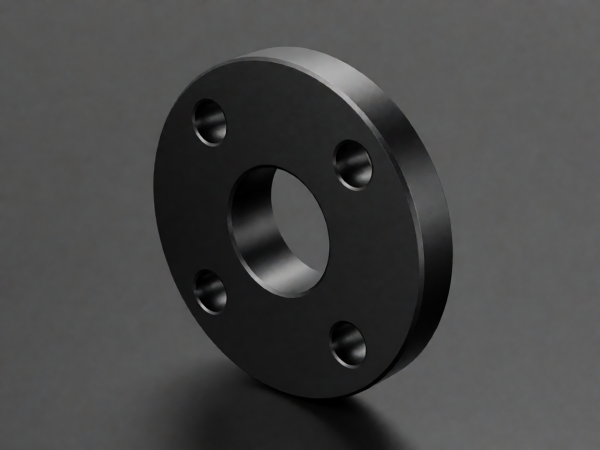

Hard-Anodized Aluminum Flange
Hard-Anodized Aluminum Flange
TM-HA-019
20007 T73 flange with 40 micron Type III hard anodizing for wear-resistant, dimensionally stable mounting interfaces.
- Material
- Aluminum 7075-T73
- Coating
- Type III hard anodize, 40 µm
- Tolerance
- Bore +0.015/0 mm (post-coat)
- Surface
- Sealing face Ra 0.8
- Certification
- ISO 9001:2015
- Outer Diameter
- 95 mm
- Bolt Circle
- 76.2 mm (4 x)
- Thickness
- 15 mm
- Coating
- Matte black Type III
- Center Bore
- Ø40 H7
- Weight
- 0.31 kg
- Process
- CNC Milling & Hard Anodizing
- Inspection
- Coating coupon test
Machined from 7075-T73 plate, these flanges are hard anodized to a 40 micron Type III coating at controlled bath temperature, so bore and bolt positions are compensated before coating and land on print after it. The result is a wear-resistant electrical-insulating surface stable in dimensional assembly.
Sealing surfaces are masked to bare-metal tolerance when conductivity is required; coating thickness and adhesion are tested on witness coupons from every load.
- Optical and sensor mounting flanges
- Robot joint interface plates
- Wear plates in guide systems
- Aerospace ground support fixtures
