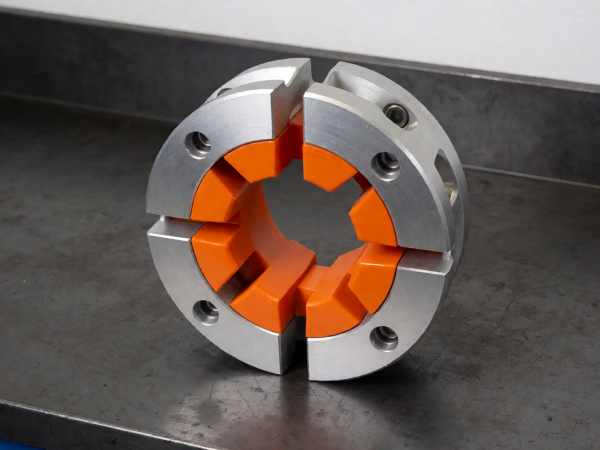

Flexible Jaw Coupling
Flexible Jaw Coupling
TM-JC-017
Two-piece aluminum jaw coupling with replaceable urethane spider, failsafe and damped for servo and pump drives.
- Material
- Aluminum 6061 hubs, 92 Shore A spider
- Tolerance
- Bore H7 ±0.01 mm
- Torque
- 85 Nm rated
- Misalignment
- Angular 1°, parallel 0.25 mm
- Certification
- ISO 9001:2015
- Outer Diameter
- 72 mm
- Max Bore
- 38 mm
- Rated Speed
- 9,000 rpm
- Fail-safe
- Yes
- Spider Hardness
- 92 Shore A
- Weight
- 0.55 kg
- Process
- CNC Milling & Anodizing
- Inspection
- Balance spot check

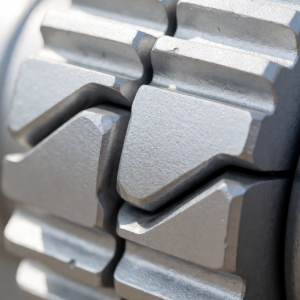

Hub lobes are machined and the urethane spider press-fit to a controlled interference, which absorbs shock, damps torsional vibration and keeps the coupling failsafe if the spider wears. Aluminum hubs are hard anodized after boring to H7 with clamp or key options.
Complete sets balance well above rated speed, and spare spiders ship color-coded by durometer so maintenance picks the right stiffness without re-alignment.

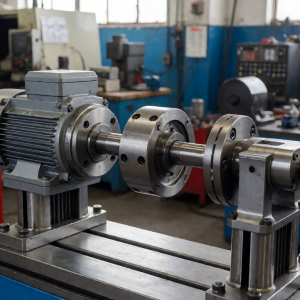

- Servo motor to ball-screw axes
- Pump and blower coupling
- Encoders and brake motors
- Packaging machine drives
