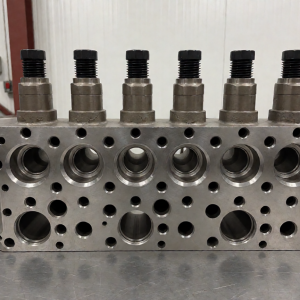

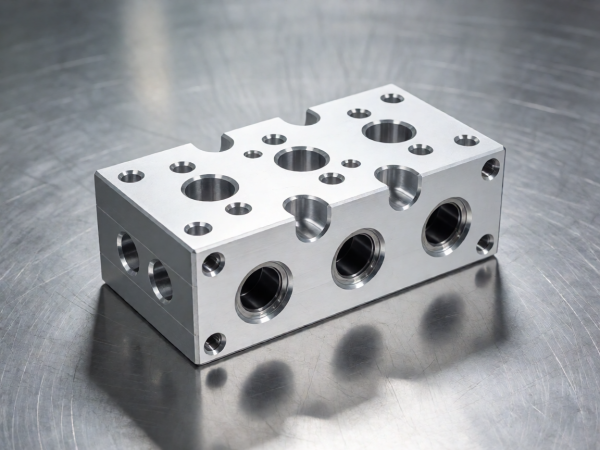

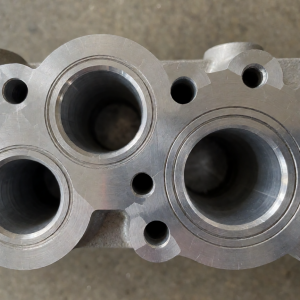

5-Axis Machined Manifold Block
5-Axis Machined Manifold Block
TM-MB-010
Five-axis machined aluminum manifold with drilled and deburred internal passages for hydraulic and pneumatic distribution.
- Material
- Aluminum 6061-T6
- Surface Finish
- Ra 1.6 sealing faces
- Tolerance
- ±0.02 mm on port positions
- Pressure
- 20 MPa rated, 30 MPa test
- Certification
- ISO 9001:2015
- Body Size
- 120 x 80 x 60 mm
- Ports
- 6 x G1/4
- Main Passage
- Ø8 mm
- Cross-Drill Junctions
- Thermal deburred
- Flatness
- 0.03 mm
- Weight
- 0.9 kg
- Process
- 5-Axis CNC Milling
- Inspection
- Flow & Leak Test
Each manifold block is milled complete on 5-axis centers from 6061-T6 plate, so intersecting internal passages, counterbores and port faces share one datum set. Cross-drilled junctions are thermal-deburred and flow-tested, which is where most manifold leakage actually starts.
Outer surfaces are clear anodized after masking the sealing faces. Port layouts follow customer schematics, and first-article dimensional reports cover every passage intersection.
- Hydraulic power distribution blocks
- Pneumatic control manifolds
- Mold temperature control circuits
- Lubrication supply lines
